Portable 7 kW DC charging for workshops and fleet service bays.
Move MOB7 between dry indoor service bays and charge a compatible EV from a suitable 220 V single-phase supply. Send the vehicle, country and outlet details for the right connector and cable set.
Best for indoor service teams that need charging in more than one bay.
MOB7 brings grid-powered DC charging to dry indoor workshop, dealership and fleet-service bays operated by trained staff.
Workshop and dealership bays
Top up vehicles during inspection, delivery preparation and commissioning.
Fleet service areas
Move one unit between designated indoor service bays instead of dedicating every bay to a fixed charger.
Temporary indoor projects
Cover short-term indoor charging or validate demand before installing fixed chargers.
The numbers needed to match MOB7 to your site and vehicle.
MOB7 provides 7 kW DC charging from a 220 V single-phase supply. We confirm the outlet, vehicle voltage, cable set and operating conditions before quotation.
- DC charging power
- 7 kW DC charging Actual speed depends on the vehicle voltage, current limit and battery state.
- Power supply needed
- 220 V AC · 50/60 Hz The outlet, breaker, wiring, earthing and available capacity must match the charger.
- Vehicle-side DC output range
- 200–1000 V DC · up to 23.3 A The vehicle and charger controls determine the usable voltage, current and power.
- Cable length shown
- 3 m option shown in product data Final input and vehicle-cable lengths are listed in your quotation.
- Conversion efficiency
- ≥94% at rated output Operating point and test conditions are confirmed for the selected configuration.
- Power factor
- >0.98 Input conditions and the applicable measurement basis are confirmed for the project.
- Cooling method
- Air cooled Keep both ventilated ends clear during operation.
- Operating temperature
- −30°C to +55°C listed Storage, ventilation and any output reduction depend on the indoor operating environment.
- Indoor protection rating
- IP30 · IK08 listed for this model Use MOB7 in a dry, supervised indoor area and ask for the applicable enclosure documents.
- Remote monitoring option
- OCPP 1.6J available as an option Network hardware, backend connection and available functions are listed in your quotation.
Check that MOB7 fits the bay and cable route.
Use these dimensions to plan a stable position with clear airflow and safe access to both cables.
Enclosure only. Allow clear space around both ventilated ends and keep the two cable paths outside vehicle and pedestrian movement.
Choose the connector that matches your vehicle and market.
Start with the vehicle inlet and destination. The image shows CCS2, while each quoted MOB7 uses one connector selected for the named vehicle.
| Option | Connector choices — choose one | What we need from you |
|---|---|---|
| CCS2 for compatible vehicles | CCS2 | The product render shows one CCS2 vehicle cable and one blue single-phase industrial input plug. Your quote includes the exact input plug, vehicle communication and charging settings. |
| Choose for your vehicle | CCS1 · CCS2 · CHAdeMO · GB/T DC · NACS DC | Choose one connector for each supplied unit. Your quote includes the connector, vehicle match, cable details and destination requirements. |
Send the vehicle make, model, year, inlet photo and destination country. We confirm the connector, vehicle voltage, communication protocol and cable configuration before order.

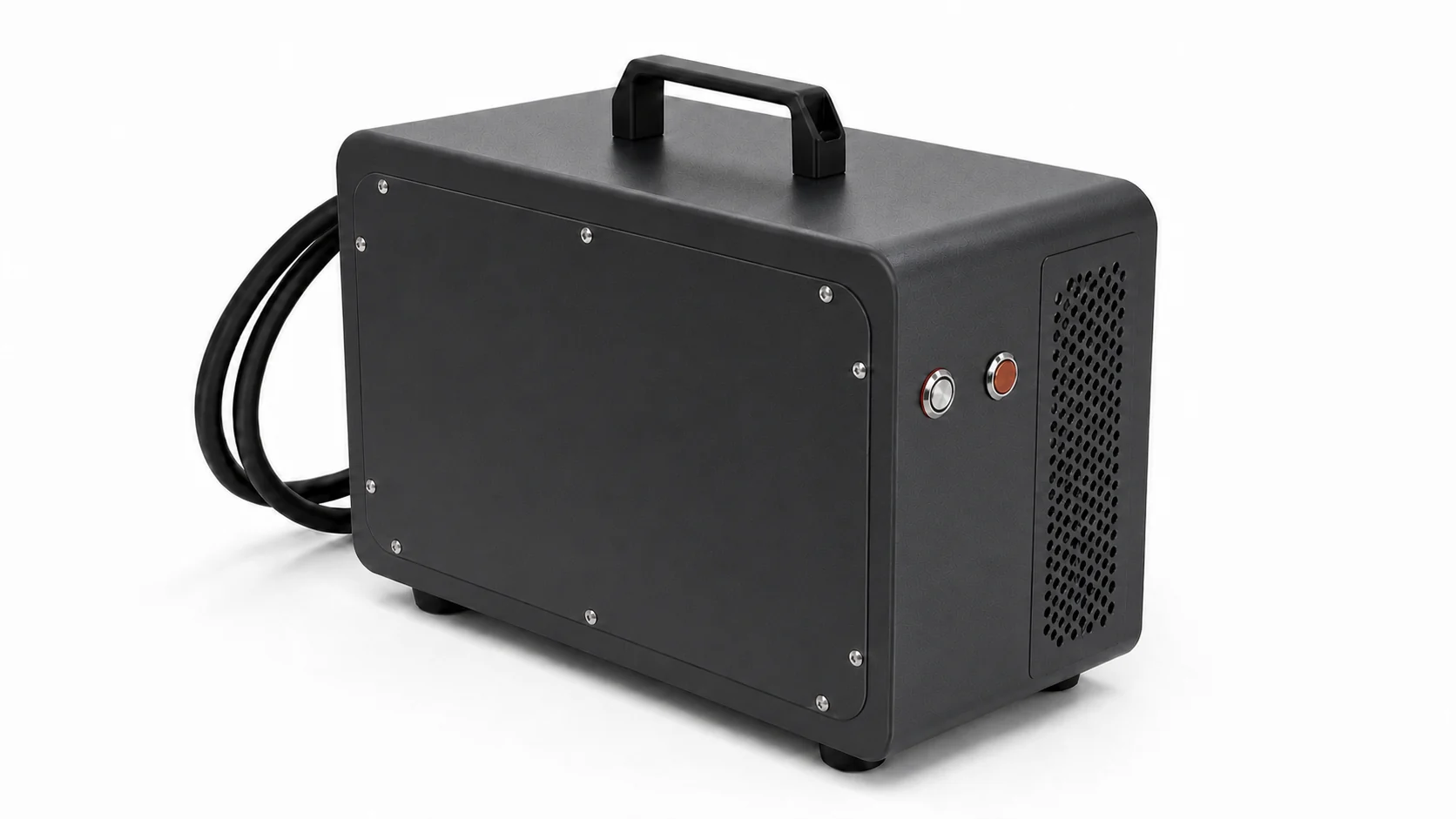

See the cable side and control side before planning the bay.
These views show the handle, controls, ventilation and cable entry points used for layout planning.
Use these product renders to plan charger position and cable routing. Your quotation identifies the selected connector and cables.
We match the document set to your country, vehicle and installation.
Send the destination country and vehicle details. Your quotation lists the documents and local requirements included for the selected configuration.
Send us
Destination country, named vehicle and dry indoor work area
We check
Electrical, EMC, vehicle-interface and product documents required for the destination
What your quote includes
The quotation lists the available reports and marks, selected connector, vehicle match, input installation and any local requirements still needed.
The charger, site power, software and delivery details must work together.
We combine MOB7 with the correct power connection, vehicle cable, operating method and order documents.
- 01 Hardware family
Confirm the mobile charging type
Separate grid-powered workshop charging from vehicle-to-vehicle and battery-buffered service tasks.
- 02 Site power
Check the power connection
Confirm the outlet, conductor, earthing, breaker, leakage protection and available site capacity.
- 03 Operations
Choose monitoring and reports
Choose whether local operation, remote visibility, session reports or platform integration belongs in the order.
- 04 Delivery
Agree packing and delivery
Record the selected connector, documents, delivery term, warranty and support route in the confirmed order.
See exactly what is included before you place the order.
Your quote lists the exact charger, documents, delivery term, warranty and support.
Charger and cables
Selected MOB7 unit, vehicle connector, input lead, cable lengths, power connection, platform option and document list.
Packing and delivery
Production schedule, packing, Incoterm, named handover point and destination responsibilities.
Warranty
Start date, duration, covered configuration, indoor operating conditions, exclusions and remedy process.
Spares and support
Spare parts, log collection, remote diagnosis, response route and any on-site service included.
Send six details for a faster, more accurate quotation.
Start with the vehicle, outlet and indoor work area; photos are helpful.
- Destination country and intended dry indoor work area
- Vehicle make, model, year, inlet photo and DC charging information
- Outlet photo, voltage and frequency, breaker, wiring and earthing details
- Preferred connector and required cable reach
- Expected sessions, energy per vehicle and indoor temperature
- Required documents, delivery, warranty, spares and support
Check basic fit, then match MOB7 to your vehicle and workshop.
Use the specifications and dimensions to check basic fit. Send the vehicle, outlet and work-area details for the exact setup.
Check size, power and operating area
MOB7 identity, 7 kW class, key dimensions and product views are available for the first fit check.
Match the connector, cable and outlet
Vehicle match, connector, cables, indoor conditions, documents, delivery, warranty and support are fixed for your project.
Common questions before choosing MOB7.
01 How fast will MOB7 charge my vehicle?
MOB7 provides up to 7 kW DC charging. Actual speed depends on the vehicle voltage, current limit, what the vehicle accepts and battery state; we confirm the named vehicle before quotation.
02 Does MOB7 contain a traction battery or energy-storage pack?
MOB7 is grid-powered and does not include a traction battery or energy-storage pack. Battery-buffered charging is a different system.
03 Which connector will my charger include?
CCS1, CCS2, CHAdeMO, GB/T DC and NACS DC are available as order options. Each supplied unit uses one selected vehicle-side cable, recorded in the quotation.
04 How do I confirm it will charge my vehicle?
Send the vehicle make, model, year, inlet photo and voltage information. We check the connector, DC range, communication and charger software for the named vehicle.
05 Can MOB7 be used outdoors without an operator?
Use MOB7 only in dry, supervised indoor workshops or service bays. Tell us if the site is outdoor or unattended so we can recommend a different charging path.
06 Can MOB7 connect to a charging management platform?
Tell us which platform you use. We confirm OCPP 1.6J, network hardware and available functions in the quotation.
07 What supply information should I send?
Send the site voltage and frequency, outlet photograph, branch rating, conductor and earthing details, upstream protection and available capacity.
08 What will be confirmed in my quotation?
The quotation records the charger configuration, selected connector and cable, required documents, packing, delivery term, warranty and support scope.
Check power, connector and delivery before requesting the quotation.
Get a MOB7 configuration for your vehicle and workshop.
Send the vehicle, outlet, connector preference, cable reach, destination country and indoor work area.
Your quote includes the supplied connector and cables, required power connection, documents, delivery, warranty and support.
