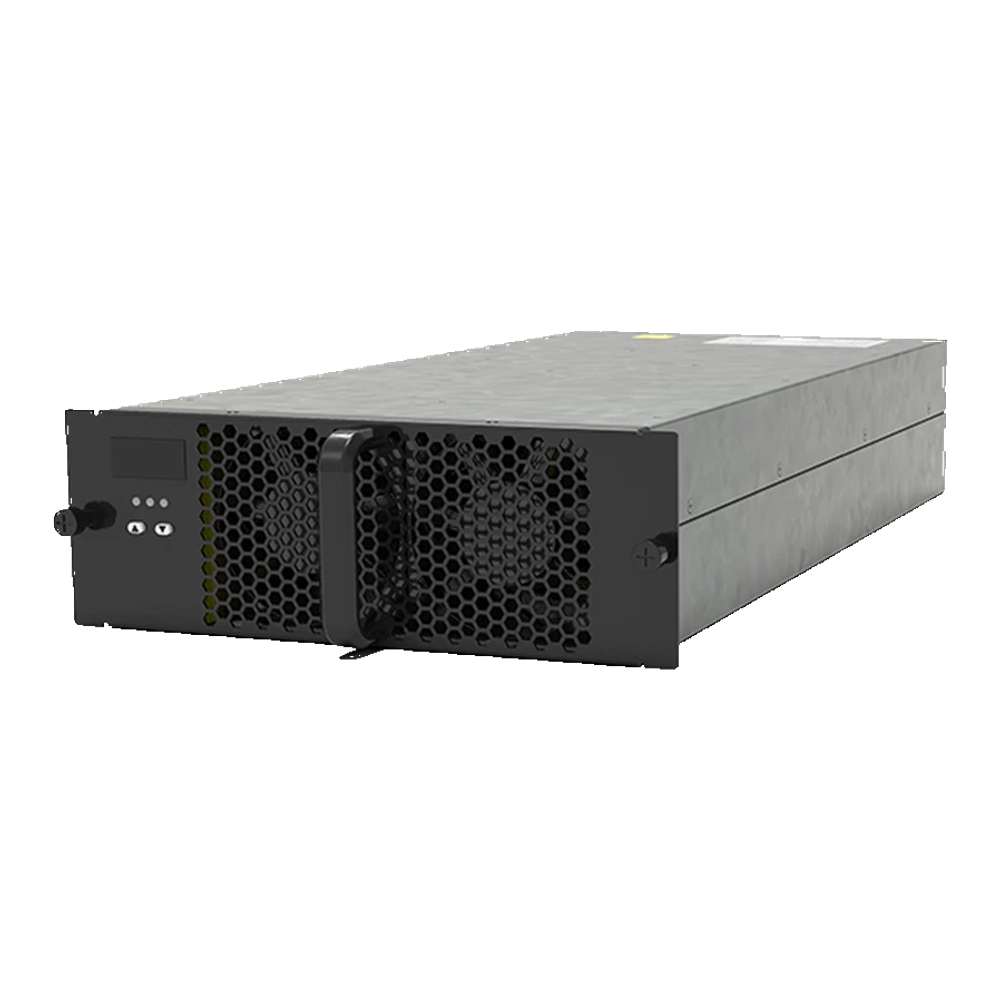

UR100020SW-AD 20kW AC/DC Compatible Input Charging Module
Use UR100020SW-AD when a 20 kW storage-charging module needs an AC- or DC-input architecture and a 150–1000 VDC output. Confirm the chosen input route, output current and controls before integration.
Match the electrical window before comparing module power
The module must align with the grid input, vehicle or battery voltage, cooling path and cabinet controller.
- 01 Input and output voltage window
- 02 Power, efficiency and thermal design
- 03 Communication and cabinet integration
Application fit
Shortlist UR100020SW-AD for a 20 kW storage-charging conversion stage requiring an AC or DC input route.
Compatibility check
Select the input route, then match output voltage, current, controller interface, protection behavior and cooling.
Matched configuration
We match the hardware revision, input route, complete electrical envelope, communication, cooling and mounting scope to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
Compare the module data that drives cabinet design
Review voltage window, power, efficiency, protection, cooling, dimensions and communication together.
- Model
- UR100020SW-AD
- Product role
- Storage-charging power module
- Rated power
- 20 kW
- Rated output
- 1000 V / 20 A
- Constant-power range
- 20 kW from 300–1000 VDC
- Output voltage
- 150–1000 VDC
- Output current
- 0.5–66.7 A
- Short-circuit response
- Current-limit mode with automatic recovery
