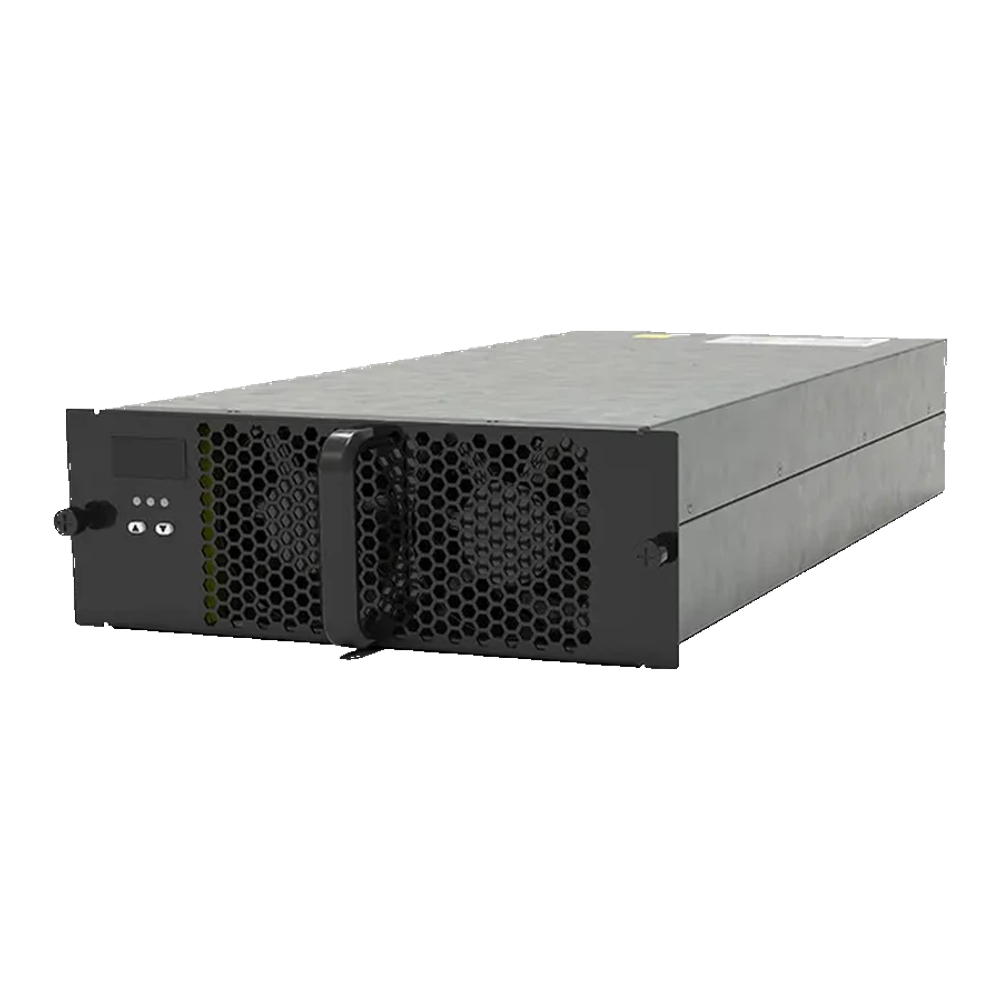

UR100020-SW 20kW Wide Range Constant Power Charging Module
Use UR100020-SW when a charger stack needs a 20 kW module for a 260–485 VAC input. Check the supply window, input current, power quality and controller integration before configuration.
Match the electrical window before comparing module power
The module must align with the grid input, vehicle or battery voltage, cooling path and cabinet controller.
- 01 Input and output voltage window
- 02 Power, efficiency and thermal design
- 03 Communication and cabinet integration
Application fit
Shortlist UR100020-SW for a modular DC charger requiring a 20 kW AC-input conversion block.
Compatibility check
Match the AC supply, required DC output, cabinet airflow, communication protocol and module-paralleling strategy.
Matched configuration
We match the hardware revision, output envelope, control protocol, cooling, mounting and parallel-operation scope to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
Compare the module data that drives cabinet design
Review voltage window, power, efficiency, protection, cooling, dimensions and communication together.
- Model
- UR100020-SW
- Product role
- EV charging power module
- Rated power
- 20 kW
- Input voltage
- 260–485 VAC
- Input frequency
- 55 ±10 Hz
- Current THD
- ≤5%
- Power factor
- ≥0.99 at rated output load
- Maximum input current
- <31 A at 400 VAC
