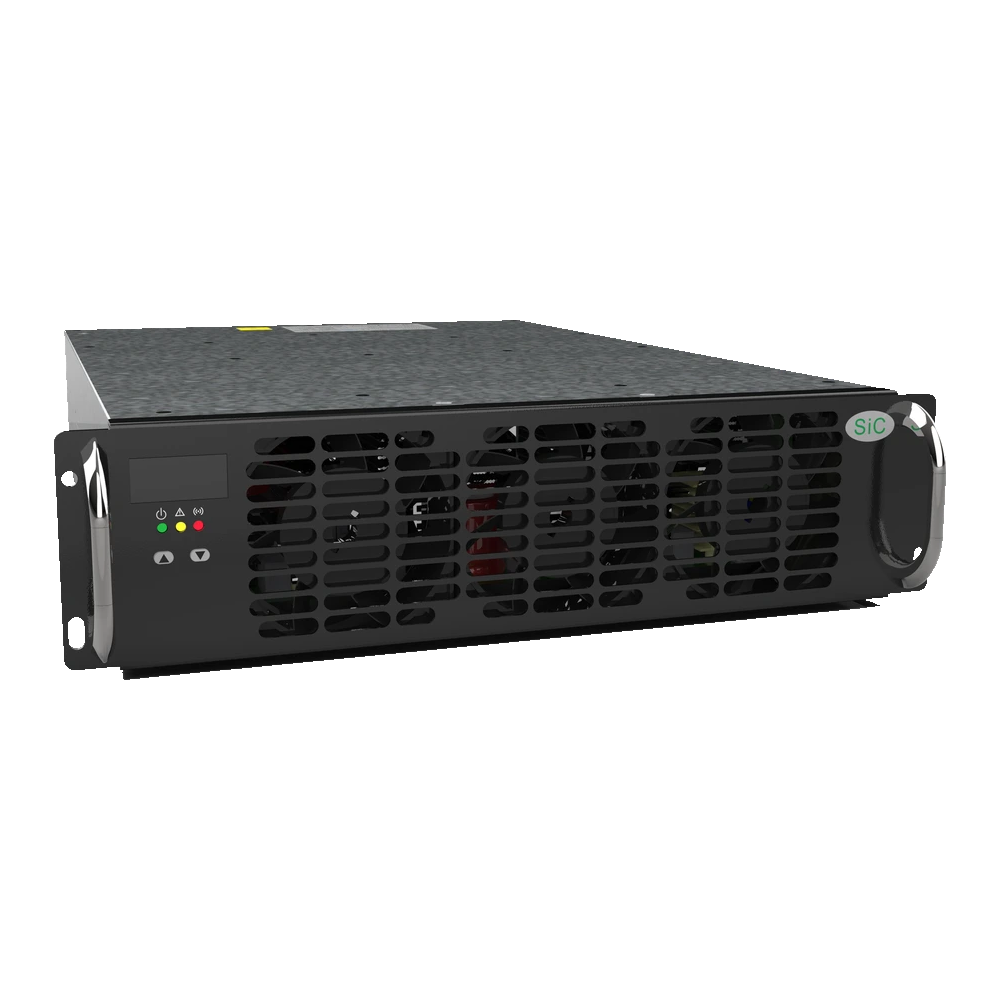

UR100040SW-SIC 40kW Wide Range Constant Power Charging Module
Use UR100040SW-SIC when a 40 kW charger module must accept 260–530 VAC and support wide-range constant-power conversion. Confirm the DC output envelope, input protections and controller integration before selection.
Match the electrical window before comparing module power
The module must align with the grid input, vehicle or battery voltage, cooling path and cabinet controller.
- 01 Input and output voltage window
- 02 Power, efficiency and thermal design
- 03 Communication and cabinet integration
Application fit
Shortlist UR100040SW-SIC for a 40 kW charger conversion stack that needs a wide AC input window.
Compatibility check
Match the AC supply, required DC output, load profile, CAN controls, module paralleling, airflow and cabinet thermal design.
Matched configuration
We match hardware revision, full output envelope, communication protocol, protection settings, cooling and mounting scope to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
Compare the module data that drives cabinet design
Review voltage window, power, efficiency, protection, cooling, dimensions and communication together.
- Model
- UR100040SW-SIC
- Product role
- EV charging power module
- Rated power
- 40 kW
- Input voltage
- 260–530 VAC
- Input frequency
- 55 ±10 Hz
- Current THD
- ≤5%
- Power factor
- ≥0.99 at rated output load
- Input undervoltage protection
- 255 ±5 V
