DC fast charging

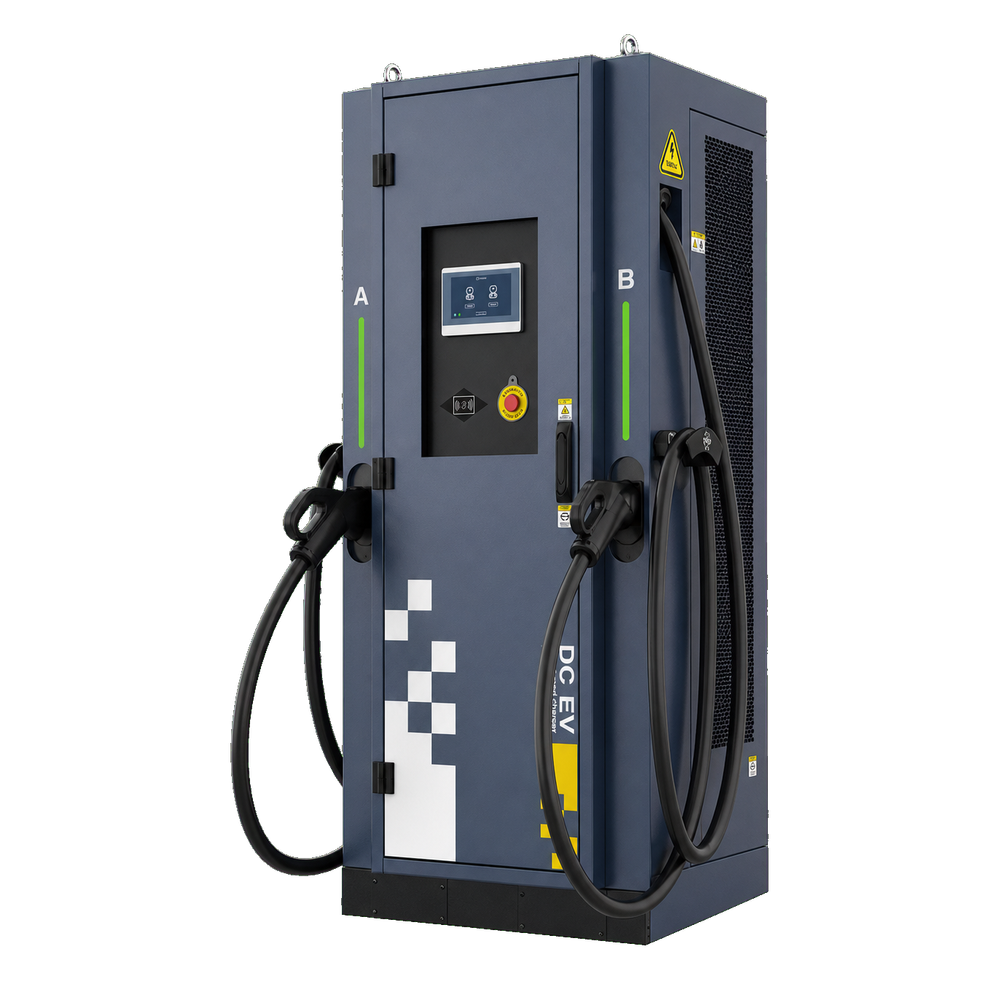

60-240kW DC Fast Charger - 745 x 630mm Cabinet
Use this configuration when a standalone charger must cover a configurable 60–240 kW range with a 200–1000 VDC output. Select the connector current, cooling route and cabinet layout for the intended load profile.
Match charging power to the vehicles and the site
Start with vehicle dwell time and available electricity, then confirm connectors, simultaneous charging and operating software.
- 01 Vehicle duty and parking time
- 02 Available site input power
- 03 Connector, payment and software scope
Application fit
Shortlist this configuration for a standalone DC charging point that needs a configurable 60–240 kW cabinet.
Compatibility check
Match feeder capacity, selected power, battery voltage, connector standard, cable cooling and service clearance.
Matched configuration
We match rated power, connector set, cable cooling, control package, cabinet revision and supplied accessories to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
See the charger specifications that shape site fit
Compare output, input, connector, protection, networking and installation requirements as one system.
- Charger format
- Standalone cabinet
- Rated power
- 60–240 kW
- Input voltage
- 400 / 480 VAC, 3P+N+PE
- Output voltage
- 200–1000 VDC; constant power from 300–1000 VDC
- Air-cooled connector current
- CCS1 200 A; CCS2 200 A; CHAdeMO 150 A; GB/T 250 A; NACS 200 A
- Liquid-cooled options
- CCS2 500 A; GB/T 800 / 600 / 400 A
- Dimensions
- 745 × 630 × 1750 mm
- Weight
- 300 kg
