DC fast charging

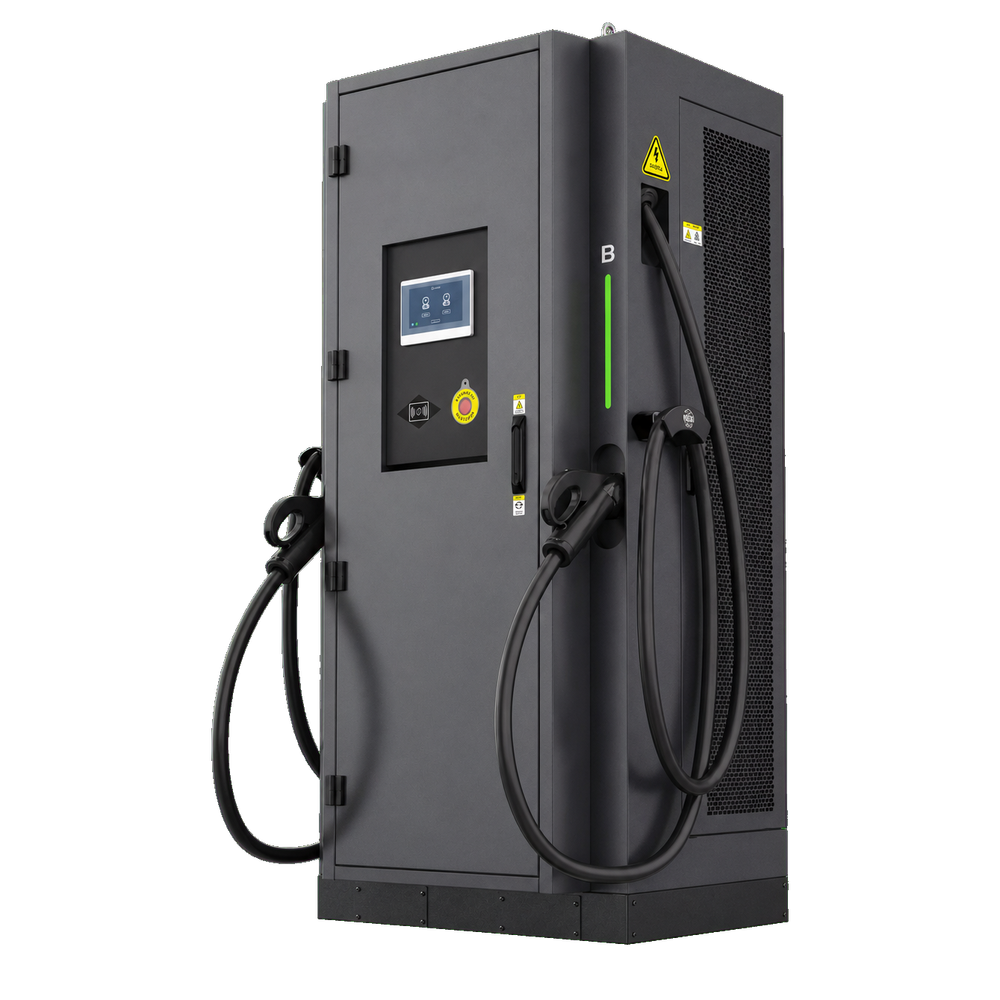

240-400kW High-Power DC Fast Charger
Use this configuration when a high-power standalone charger is required in the 240–400 kW range with a 200–1000 VDC output. Confirm feeder capacity, connector current and liquid-cooling needs before selection.
Compare the current technical profile
Use these values to shortlist the product, then confirm the final model, interfaces and supplied scope in the project quotation.
- Charger format
- Standalone cabinet
- Rated power
- 240–400 kW
- Input voltage
- 400 / 480 VAC, 3P+N+PE
- Output voltage
- 200–1000 VDC; constant power from 300–1000 VDC
- Air-cooled connector current
- CCS1 200 A; CCS2 200 A; CHAdeMO 150 A; GB/T 250 A; NACS 200 A
- Liquid-cooled options
- CCS2 500 A; GB/T 800 / 600 / 400 A
- Dimensions
- 900 × 700 × 1900 mm
- Weight
- 400 kg
Turn the profile into an order-ready configuration
Application fit
Shortlist this configuration for a high-throughput charging site that needs a 240–400 kW standalone cabinet.
Compatibility check
Check feeder capacity, peak site load, vehicle voltage, connector standard, cooling route and cabinet service clearance.
Quotation lock
The quotation fixes rated power, connector set, cable cooling, load management, network controls and enclosure revision.
Final ratings, interfaces, compatibility, appearance and supplied scope are confirmed in the final quotation. This page does not state price, stock or a fixed delivery configuration.
Compare adjacent product profiles
Confirm this product against your project inputs
Send the destination, application, electrical requirements and quantity to receive the final configuration and supplied scope.
