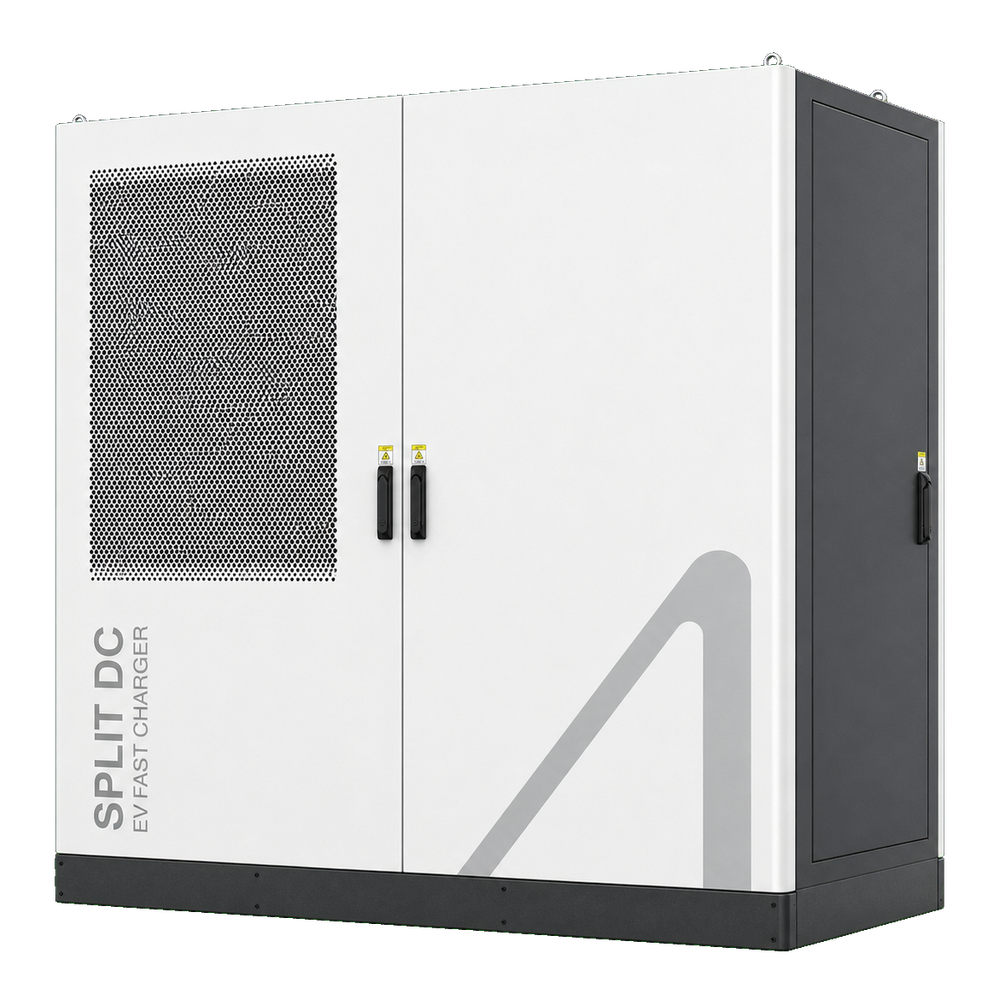

960kW Distributed DC Fast Charging System
Use this configuration when a split-type charging site needs a 960 kW shared DC power system with a 200–1000 VDC output window. The terminal layout, connector mix and project output-current envelope must be locked before selection.
Match charging power to the vehicles and the site
Start with vehicle dwell time and available electricity, then confirm connectors, simultaneous charging and operating software.
- 01 Vehicle duty and parking time
- 02 Available site input power
- 03 Connector, payment and software scope
Application fit
Shortlist this configuration for a high-capacity multi-terminal charging site that centralizes 960 kW in a distributed architecture.
Compatibility check
Match the 480 VAC service, feeder capacity, terminal topology, connector mix, DC voltage range and power-allocation plan.
Matched configuration
We match the project output-current envelope, power cabinet, terminal count, allocation controls, connector set and civil interfaces to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
See the charger specifications that shape site fit
Compare output, input, connector, protection, networking and installation requirements as one system.
- System class
- 960 kW distributed system
- Rated system power
- 960 kW
- System architecture
- Split-type distributed DC fast-charging system
- Connector options
- CCS1, CCS2, CHAdeMO, GB/T or NACS
- Input voltage
- 480 VAC, 3P+N+PE
- Output voltage
- 200–1000 VDC
- Efficiency
- ≥94%
