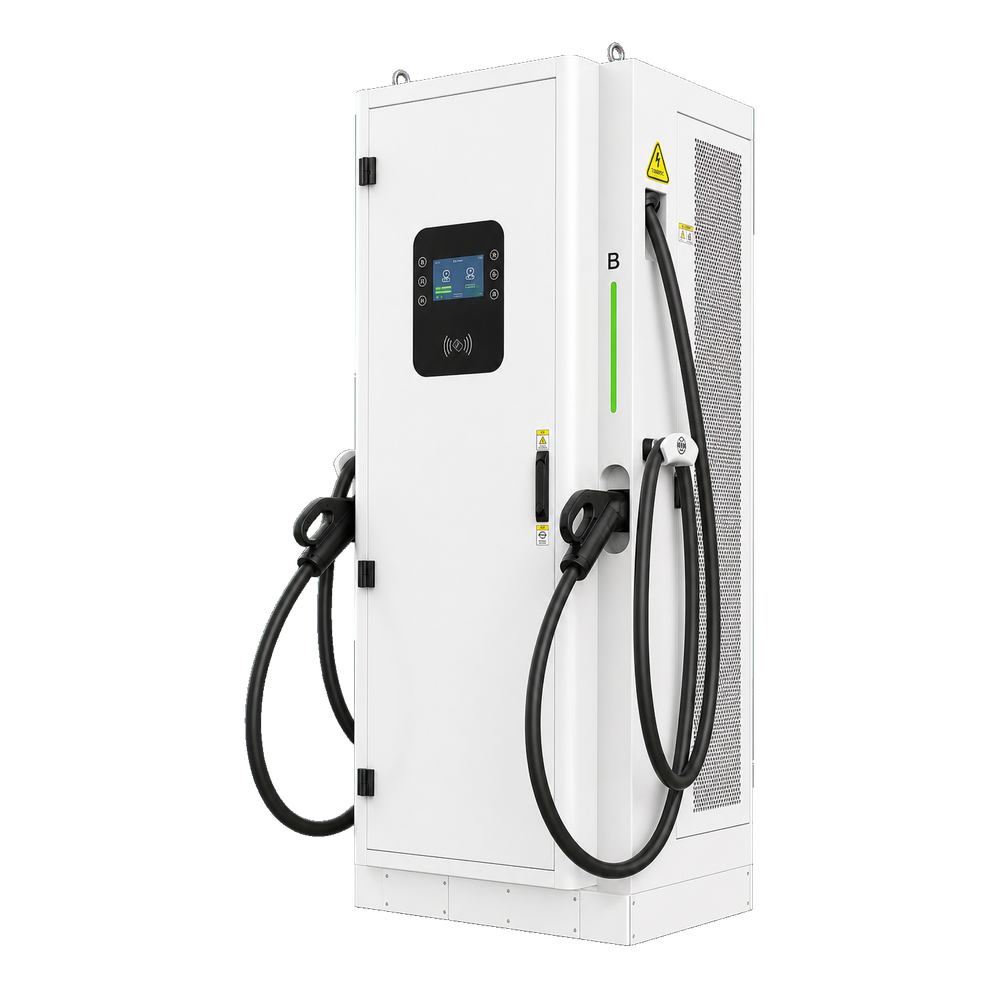

60-240kW DC Fast Charger - 750 x 750mm Cabinet
Use this configuration when a 60–240 kW DC charger must support a 200–1000 VDC output and either air- or liquid-cooled connector routes. Confirm the power build, interface and delivered handling weight before quotation.
Match charging power to the vehicles and the site
Start with vehicle dwell time and available electricity, then confirm connectors, simultaneous charging and operating software.
- 01 Vehicle duty and parking time
- 02 Available site input power
- 03 Connector, payment and software scope
Application fit
Shortlist this configuration for a 60–240 kW standalone charging site where its cabinet footprint and connector options fit the layout.
Compatibility check
Match site power, vehicle voltage, connector standard, cable cooling, cabinet clearance and delivery handling plan.
Matched configuration
We match rated power, connector set, cooling route, cabinet revision, packing method and supplied documentation to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
See the charger specifications that shape site fit
Compare output, input, connector, protection, networking and installation requirements as one system.
- Charger format
- Standalone cabinet
- Rated power
- 60–240 kW
- Input voltage
- 400 / 480 VAC, 3P+N+PE
- Output voltage
- 200–1000 VDC; constant power from 300–1000 VDC
- Air-cooled connector current
- CCS1 200 A; CCS2 200 A; CHAdeMO 150 A; GB/T 250 A; NACS 200 A
- Liquid-cooled options
- CCS2 500 A; GB/T 800 / 600 / 400 A
- Dimensions
- 750 × 750 × 1880 mm
- Packed handling weight
- About 310 kg including wooden crate
