DC fast charging

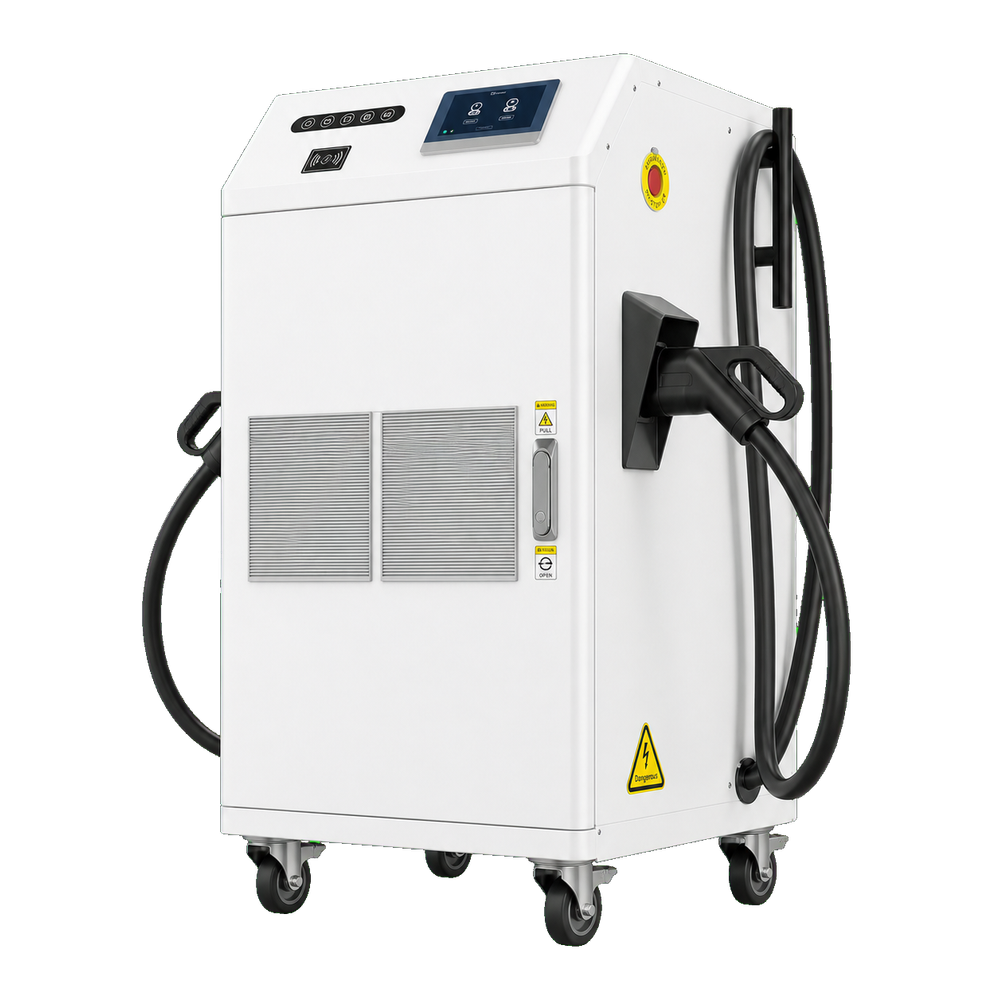

40kW Mobile DC EV Charger
Use this configuration when a movable 40 kW DC charger must accept a 400 or 480 VAC supply and cover a 200–1000 VDC output window. Select the connector and confirm the 120 A output duty before configuration.
Match charging power to the vehicles and the site
Start with vehicle dwell time and available electricity, then confirm connectors, simultaneous charging and operating software.
- 01 Vehicle duty and parking time
- 02 Available site input power
- 03 Connector, payment and software scope
Application fit
Shortlist this configuration for a workshop, service area or temporary charging task that needs a movable 40 kW DC charger.
Compatibility check
Check the available three-phase supply, vehicle connector, battery voltage window, 120 A duty and movement path at the site.
Matched configuration
We match the vehicle connector, cable length, input arrangement, display language, mobility hardware and supplied revision to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
See the charger specifications that shape site fit
Compare output, input, connector, protection, networking and installation requirements as one system.
- Installation format
- Mobile wheeled unit
- Rated power
- 40 kW
- Input voltage
- 400 / 480 VAC, 3P+N+PE
- Input frequency
- 50 / 60 Hz
- Output voltage
- 200–1000 VDC
- Output current
- 120 A for the listed CCS1, CCS2, CHAdeMO and GB/T routes
- Connector options
- CCS1, CCS2, CHAdeMO or GB/T
- Display
- 7-inch LCD touchscreen
Compare adjacent charger power and system options
Match this product to your project inputs
Send the destination, application, electrical requirements and quantity to receive a complete product proposal.
