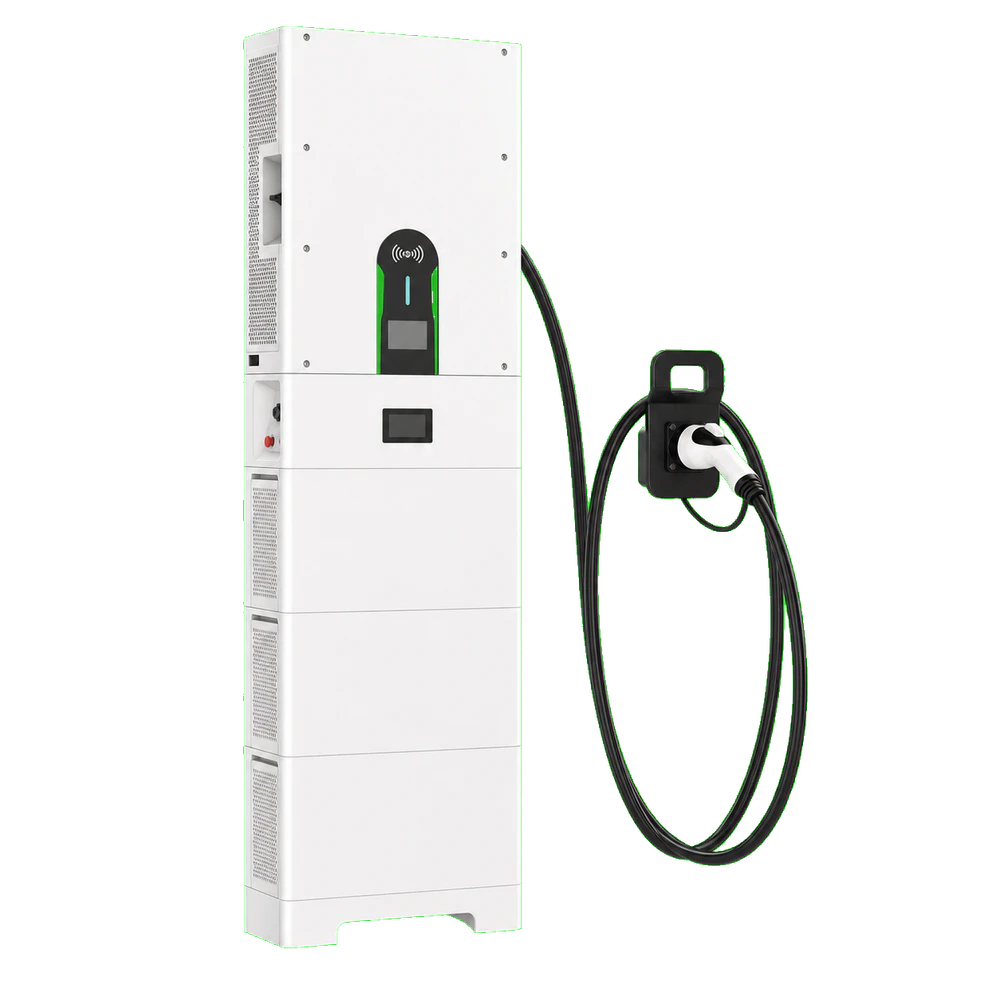

UHS7KYE-CCS2BD 7kW Stacked Hybrid ESS With V2G
Evaluate UHS7KYE-CCS2BD 7kW Stacked Hybrid ESS With V2G as v2x bidirectional dc charging solution at 7kW. Match the listed AC and DC operating windows and current limits to the intended power-flow direction. Map rectification or charging to 150-1000Vdc and 0-23.5A, and inverter or discharging to 300-1000Vdc and 0-25A.
Separate power demand from energy duration before sizing storage
A storage system must cover both instantaneous charging power and the required operating time within the site energy plan.
- 01 Required kW and usable kWh
- 02 Grid, backup or off-grid operating mode
- 03 Thermal, protection and site integration
Application fit
Use UHS7KYE-CCS2BD 7kW Stacked Hybrid ESS With V2G where the project needs v2x bidirectional dc charging solution and the 7kW rating fits the vehicle, grid and storage interfaces.
Compatibility check
Verify AC topology, DC voltage and current ranges, connector or cable scope, charging and discharging direction, controls, communications and protection. Map rectification or charging to 150-1000Vdc and 0-23.5A, and inverter or discharging to 300-1000Vdc and 0-25A.
Matched configuration
We match model UHS7KYE-CCS2BD, one operating configuration, power-flow directions, AC and DC limits, connector or cable package, enclosure, controls, protection and documentation to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
Compare power, energy and site-integration requirements
Review rated power, usable energy, voltage, cooling, protection and installation conditions as one operating system.
- Model
- UHS7KYE-CCS2BD
- Product role
- v2x bidirectional dc charging solution
- Power band
- 7kW
- Rated power (W)
- 7000W
- DC side voltage range (V)
- Rectification mode:150~1000VDC (150~300VDC constant current 23.3A):Inverter mode:300~1000VDC
- DC side current range (A)
- 0～23.5 （charge）; 0～25 （discharge）
- AC output topology
- Single phase three wire （L/N/PE）
- Nominal voltage/range (V)
- 220VAC (176～275VAC)
