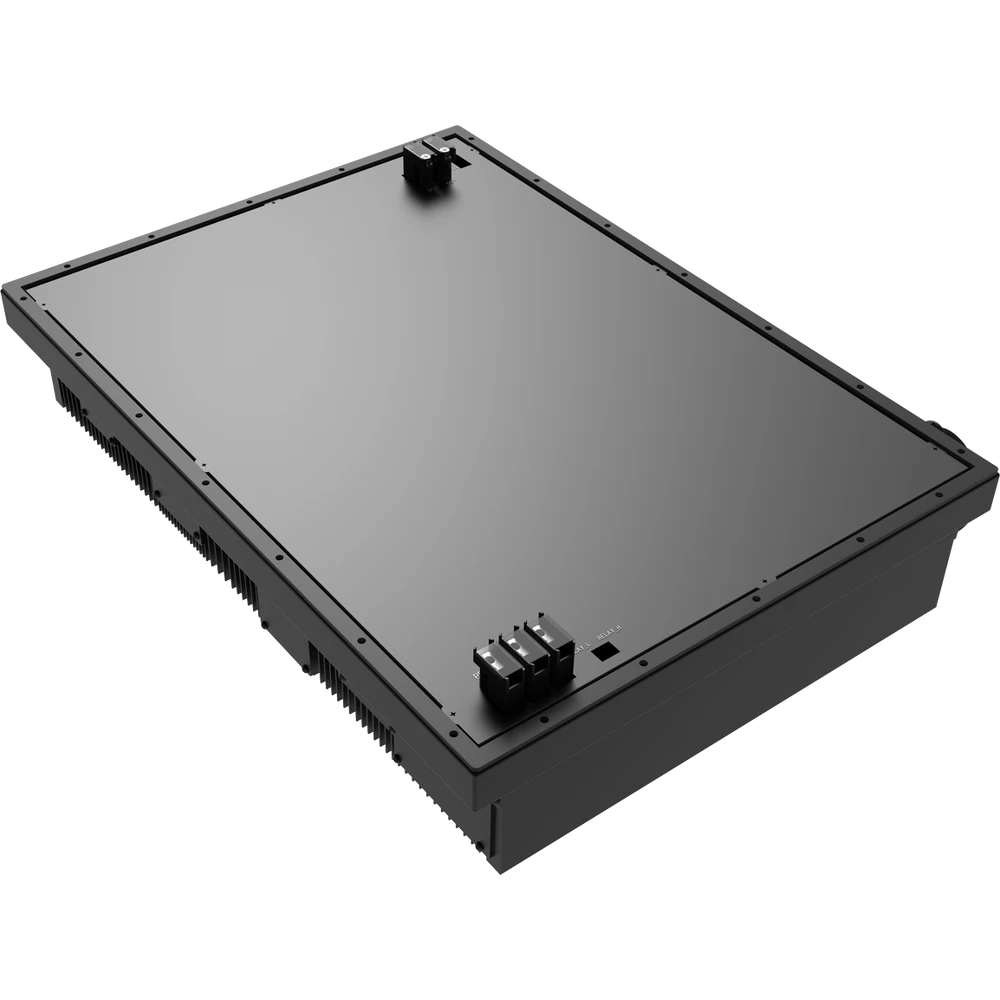

UBP10007 7kW V2G Bidirectional Charger
Evaluate UBP10007 7kW V2G Bidirectional Charger for a 7kW bidirectional vehicle-grid interface. Match the listed AC and DC operating windows and current limits to the intended power-flow direction. Confirm the 50Hz rated AC frequency against the separately listed 55±10Hz grid-frequency row, and lock rectifier versus inverter DC ranges and current directions.
Match charging power to the vehicles and the site
Start with vehicle dwell time and available electricity, then confirm connectors, simultaneous charging and operating software.
- 01 Vehicle duty and parking time
- 02 Available site input power
- 03 Connector, payment and software scope
Application fit
Use UBP10007 7kW V2G Bidirectional Charger where the project needs bidirectional vehicle-grid power transfer and the 7kW rating fits the vehicle, grid and storage interfaces.
Compatibility check
Verify AC topology, DC voltage and current ranges, connector or cable scope, charging and discharging direction, controls, communications and protection. Confirm the 50Hz rated AC frequency against the separately listed 55±10Hz grid-frequency row, and lock rectifier versus inverter DC ranges and current directions.
Matched configuration
We match model UBP10007, one operating configuration, power-flow directions, AC and DC limits, connector or cable package, enclosure, controls, protection and documentation to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
See the charger specifications that shape site fit
Compare output, input, connector, protection, networking and installation requirements as one system.
- Model
- UBP10007
- Product role
- V2G bidirectional charger
- Power band
- 7kW
- AC side system
- single-phase three-wire(L/N/PE)
- Rated voltage (range)
- 220VAC(88~275VAC)
- Maximum AC side current
- 43A
- Rated AC power
- 7000W
- DC Side Voltage Range
- rectifiermode:150VDC ~ 1000VDC(150VDC ~ 250VDC constant-current 28A) / invertermode:250VDC ~ 1000VDC
