BESS storage charging

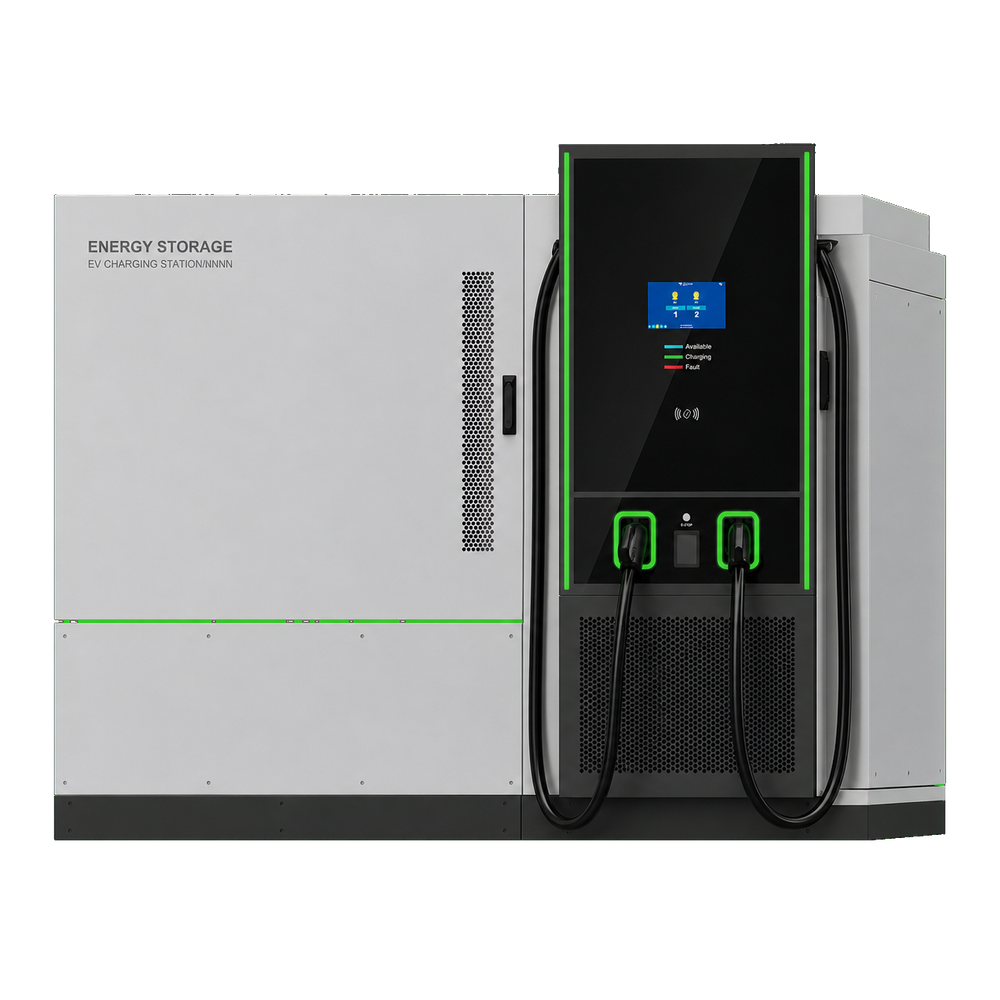

215kWh Fixed BESS EV Charger, 90kW Output
Use this fixed BESS charger when a site needs 215 kWh of storage and 90 kW of DC charging output. Confirm the storage duty, connector mix, recharge source and optional PV-converter route before selection.
Match charging power to the vehicles and the site
Start with vehicle dwell time and available electricity, then confirm connectors, simultaneous charging and operating software.
- 01 Vehicle duty and parking time
- 02 Available site input power
- 03 Connector, payment and software scope
Application fit
Shortlist this configuration for a fixed site that needs stored-energy support for a 90 kW DC charging load.
Compatibility check
Match battery duty, recharge source, connector standard, vehicle voltage, current ceiling and optional PV input.
Matched configuration
We match battery configuration, charging modules, connector set, PV option, thermal system and site interfaces to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
See the charger specifications that shape site fit
Compare output, input, connector, protection, networking and installation requirements as one system.
- Battery capacity
- 215 kWh
- Charging power
- 90 kW using 30 kW modules
- Output voltage
- 200–1000 VDC
- Output current
- 1–250 A
- Connector options
- GB/T, CCS1, CCS2, CHAdeMO or NACS
- PV-converter option
- 50 or 100 kW
- Efficiency
- ≥94% at standard output power
Compare adjacent charger power and system options
Match this product to your project inputs
Send the destination, application, electrical requirements and quantity to receive a complete product proposal.
Request price and availability
Your selected product is attached automatically. Add only what you already know.
