BESS storage charging

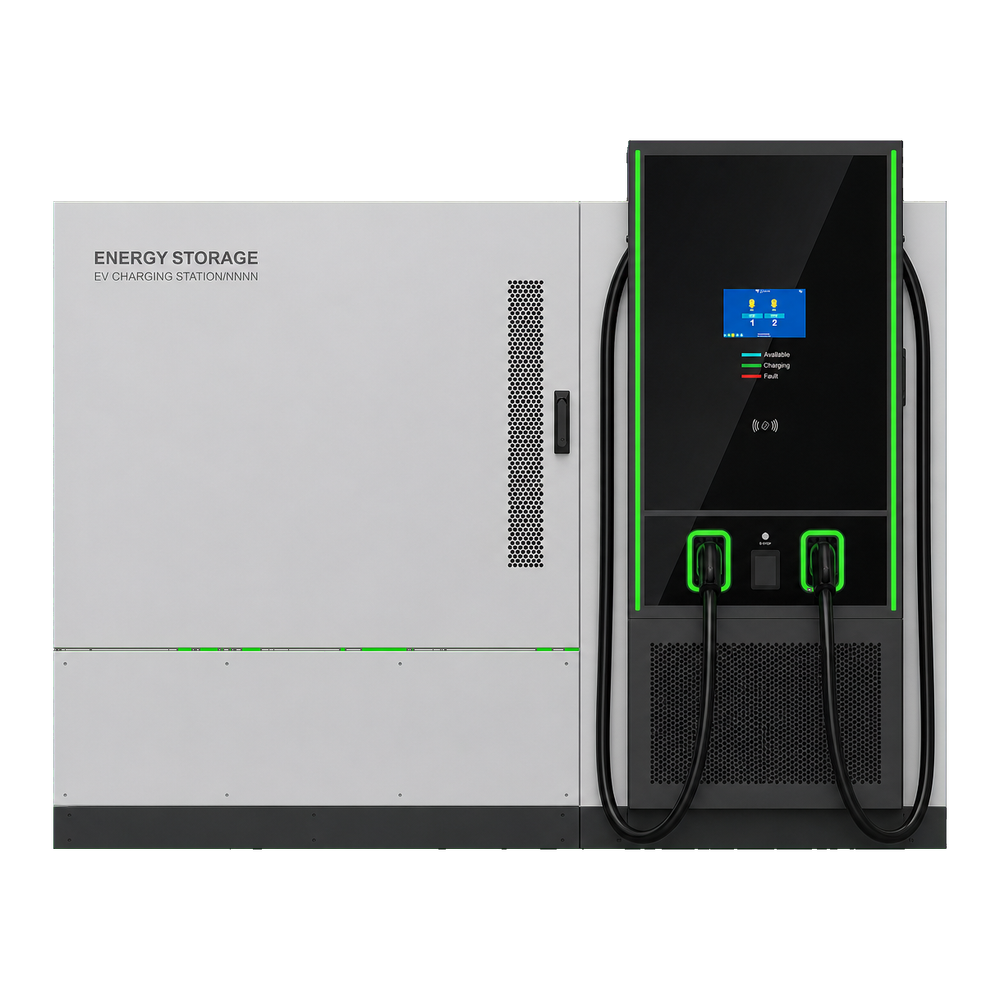

120kWh Fixed BESS EV Charger, 60kW Output
Use this fixed BESS charger when a site needs 120 kWh of storage and 60 kW of DC charging output. Confirm the storage duty, connector mix, recharge source and optional PV-converter route before selection.
Compare the current technical profile
Use these values to shortlist the product, then confirm the final model, interfaces and supplied scope in the project quotation.
- Battery capacity
- 120 kWh
- Charging power
- 60 kW using 30 kW modules
- Output voltage
- 200–1000 VDC
- Output current
- 1–250 A
- Connector options
- GB/T, CCS1, CCS2, CHAdeMO or NACS
- PV-converter option
- 50 or 100 kW
- Efficiency
- ≥94% at standard output power
Turn the profile into an order-ready configuration
Application fit
Shortlist this configuration for a fixed site that needs stored-energy support for a 60 kW DC charging load.
Compatibility check
Match battery duty, recharge source, connector standard, vehicle voltage, current ceiling and optional PV input.
Quotation lock
The quotation fixes battery configuration, charging modules, connector set, PV option, thermal system and site interfaces.
Final ratings, interfaces, compatibility, appearance and supplied scope are confirmed in the final quotation. This page does not state price, stock or a fixed delivery configuration.
Compare adjacent product profiles
Confirm this product against your project inputs
Send the destination, application, electrical requirements and quantity to receive the final configuration and supplied scope.
