DC fast charging

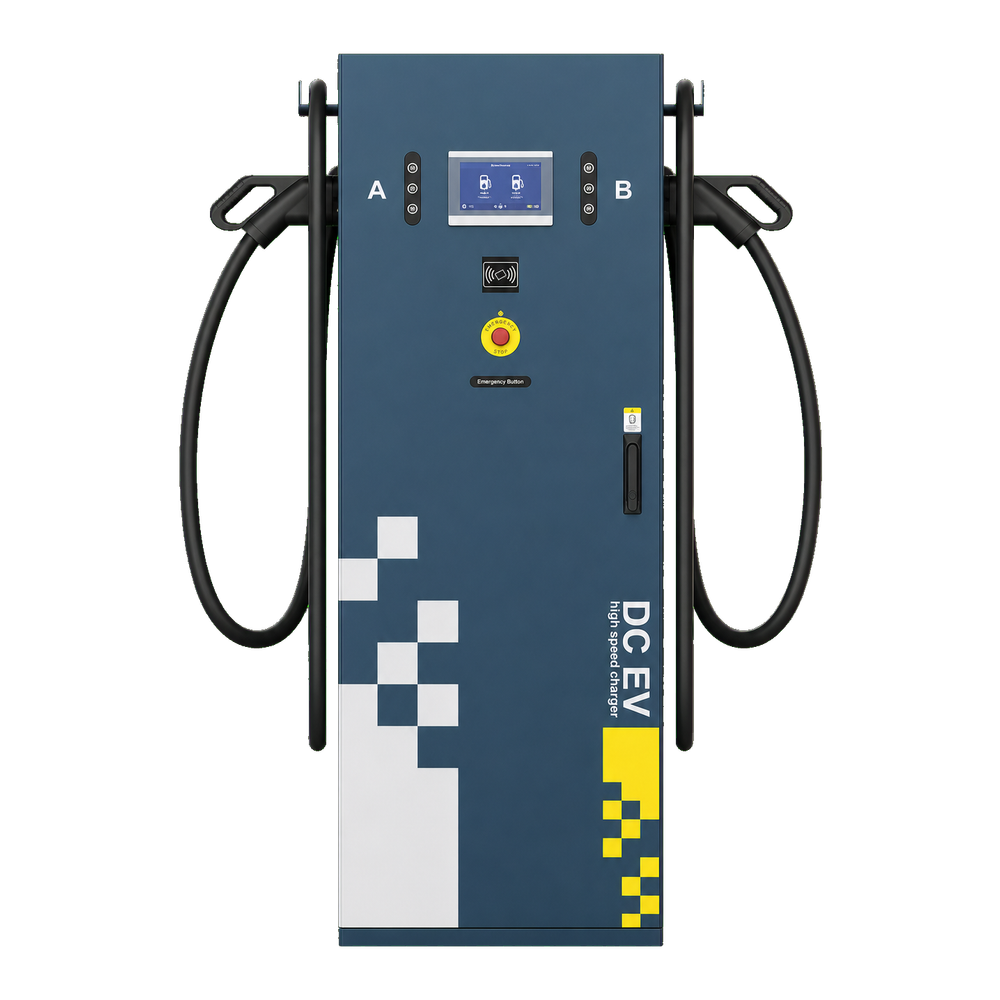

60-80kW DC Fast Charger
Use this configuration when a 60–80 kW DC charger must cover a 200–1000 VDC output and offer air- or liquid-cooled connector routes. Confirm the interface-specific current and cabinet fit before configuration.
Match charging power to the vehicles and the site
Start with vehicle dwell time and available electricity, then confirm connectors, simultaneous charging and operating software.
- 01 Vehicle duty and parking time
- 02 Available site input power
- 03 Connector, payment and software scope
Application fit
Shortlist this configuration for a standalone 60–80 kW charging point that may require a higher-current liquid-cooled cable route.
Compatibility check
Match the AC service, battery voltage, connector standard, cable cooling, current duty and cabinet clearance.
Matched configuration
We match power, connector standard, air- or liquid-cooled cable, current rating, controls and enclosure revision to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
See the charger specifications that shape site fit
Compare output, input, connector, protection, networking and installation requirements as one system.
- Charger format
- Standalone cabinet
- Rated power
- 60–80 kW
- Input voltage
- 400 / 480 VAC, 3P+N+PE
- Output voltage
- 200–1000 VDC; constant power from 300–1000 VDC
- Air-cooled connector current
- CCS1 200 A; CCS2 200 A; CHAdeMO 150 A; GB/T 250 A; NACS 200 A
- Liquid-cooled options
- CCS2 500 A; GB/T 800 / 600 / 400 A
- Dimensions
- 600 × 700 × 1870 mm
- Weight
- 300 kg
Compare adjacent charger power and system options
Match this product to your project inputs
Send the destination, application, electrical requirements and quantity to receive a complete product proposal.
Request price and availability
Your selected product is attached automatically. Add only what you already know.
