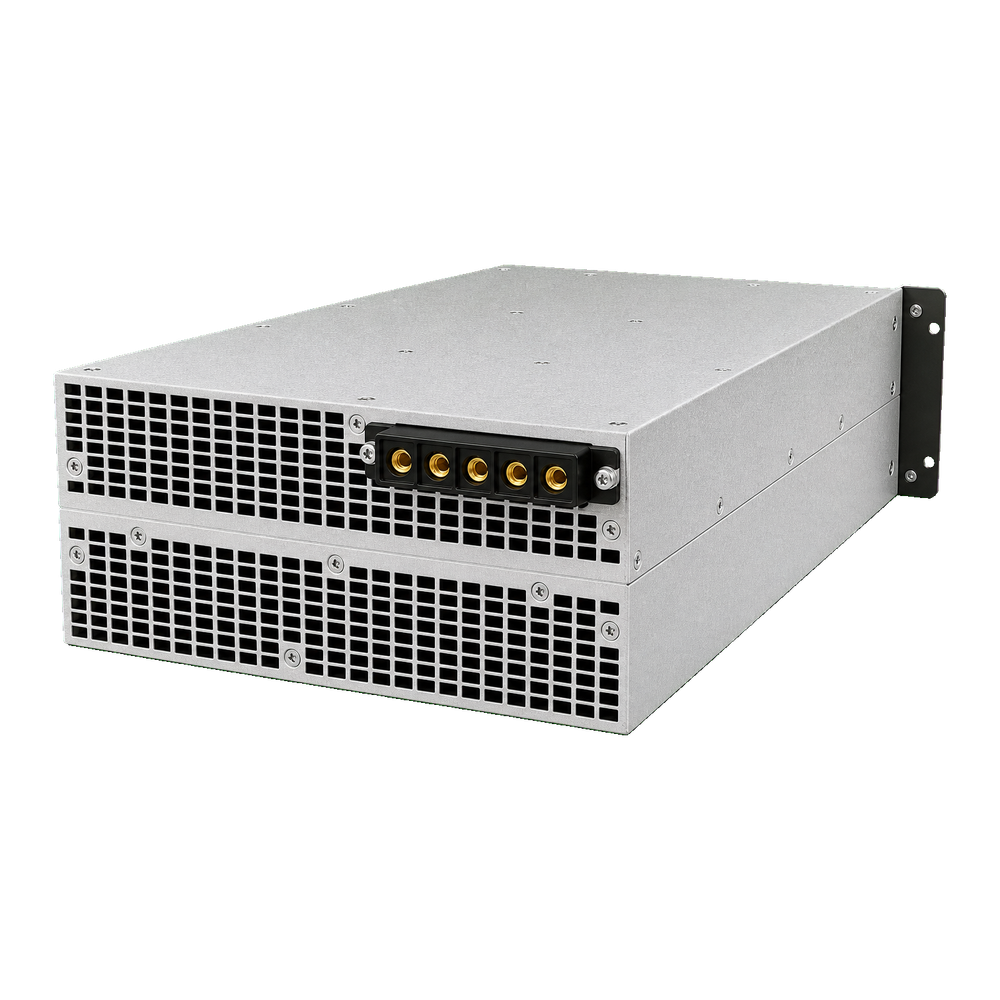

UR100060E 60kW EV Charging Power Module
Use UR100060E when a charger stack needs a 60 kW module with a 150–1000 VDC output and automatic high- and low-voltage switching. Confirm the 200 A ceiling, controls and thermal design before selection.
Match the electrical window before comparing module power
The module must align with the grid input, vehicle or battery voltage, cooling path and cabinet controller.
- 01 Input and output voltage window
- 02 Power, efficiency and thermal design
- 03 Communication and cabinet integration
Application fit
Shortlist UR100060E for a high-power charger stack requiring a 60 kW module across a broad battery-voltage range.
Compatibility check
Match the battery voltage, 200 A duty, input supply, controller, module paralleling and cabinet cooling.
Matched configuration
We match the hardware revision, electrical envelope, mode switching, communication, cooling and mounting scope to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
Compare the module data that drives cabinet design
Review voltage window, power, efficiency, protection, cooling, dimensions and communication together.
- Model
- UR100060E
- Product role
- EV charging power module
- Rated power
- 60 kW
- Output voltage
- 150–1000 VDC
- Constant-power output
- 60 kW
- Voltage-mode switching
- Automatic; low-voltage 300–500 V, high-voltage 500–1000 V
- Output current
- 0–200 A
- Regulation accuracy
- Voltage ≤±0.5%; current ≤±1%
