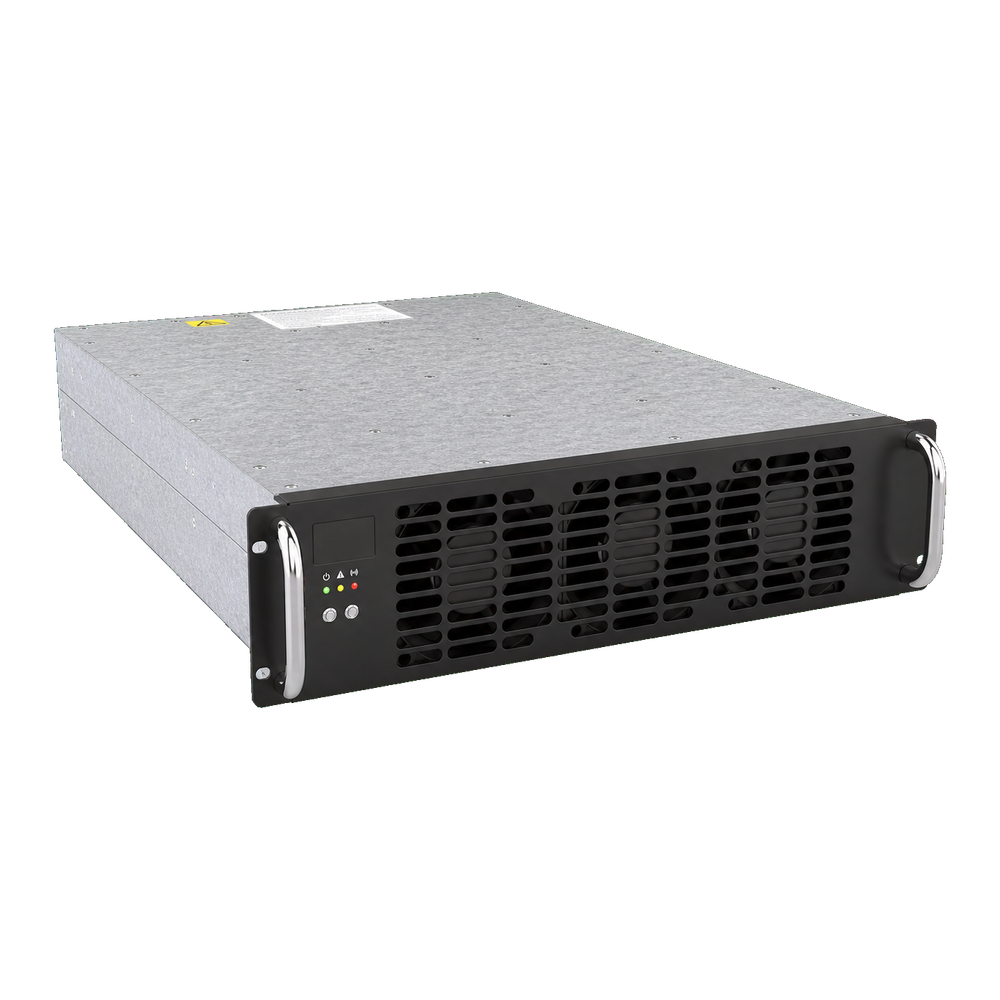

UR100040-DD 40kW Storage Charging Power Module
Use UR100040-DD when a 40 kW storage-charging conversion stage needs selectable high- and low-voltage output modes. Confirm the mode, voltage range, current limit and controls before integrating the module.
Match the electrical window before comparing module power
The module must align with the grid input, vehicle or battery voltage, cooling path and cabinet controller.
- 01 Input and output voltage window
- 02 Power, efficiency and thermal design
- 03 Communication and cabinet integration
Application fit
Shortlist UR100040-DD for a storage-charging system requiring a 40 kW module with two DC output-mode ranges.
Compatibility check
Select the voltage mode, then match the battery range, current limit, DC input architecture, controller interface and cooling.
Matched configuration
We match hardware revision, voltage mode, current profile, communication protocol, cooling and mounting scope to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
Compare the module data that drives cabinet design
Review voltage window, power, efficiency, protection, cooling, dimensions and communication together.
- Model
- UR100040-DD
- Product role
- Storage-charging power module
- Rated power
- 40 kW
- Operating modes
- High-voltage or low-voltage mode
- Output adjustment range
- High-voltage: 200–1000 VDC; low-voltage: 150–500 VDC
- Rated output voltage
- High-voltage: 1000 VDC; low-voltage: 500 VDC
- Rated output current
- High-voltage: 40 A; low-voltage: 80 A
- Current-limit range
- High-voltage: 0.5–80 A; low-voltage: 0.5–133 A
