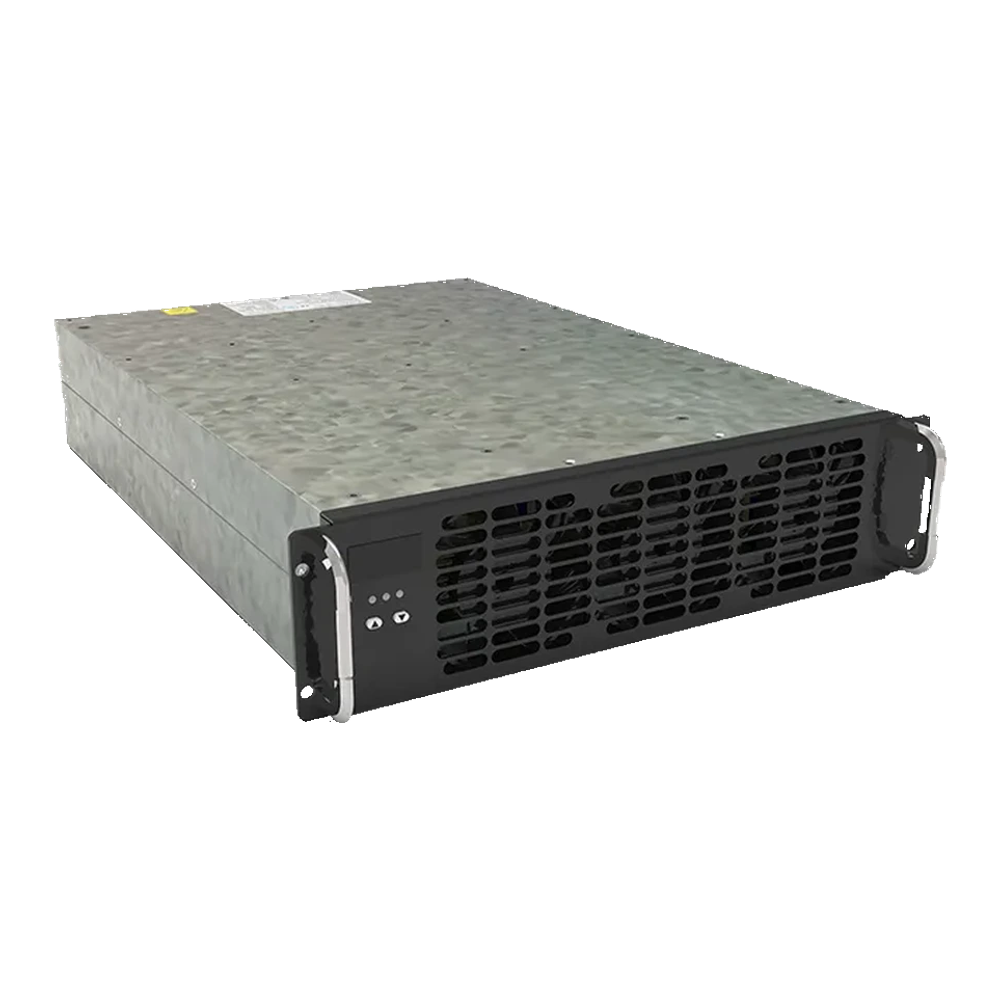

UR100030-VPFC 30kW High Power Charging Module With Variable Power Factor Correction
Use UR100030-VPFC when a 30 kW charging module must operate from 260–530 VAC and support a variable power-factor range. Confirm the grid-control objective, load range and controller interface before integration.
Match the electrical window before comparing module power
The module must align with the grid input, vehicle or battery voltage, cooling path and cabinet controller.
- 01 Input and output voltage window
- 02 Power, efficiency and thermal design
- 03 Communication and cabinet integration
Application fit
Shortlist UR100030-VPFC for a 30 kW charger stack where the project requires controlled capacitive or inductive power-factor operation.
Compatibility check
Match the AC input, grid-control objective, operating load, output demand, communication protocol and cabinet cooling.
Matched configuration
We match hardware revision, power-factor control range, electrical envelope, communication, cooling and mounting scope to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
Compare the module data that drives cabinet design
Review voltage window, power, efficiency, protection, cooling, dimensions and communication together.
- Model
- UR100030-VPFC
- Product role
- EV charging power module
- Rated power
- 30 kW
- Input voltage
- 260–530 VAC
- Grid frequency
- 55 ±10 Hz
- Power-factor range
- 0.9 capacitive to unity to 0.9 inductive
- Current THD
- ≤5% above half load
- Input inrush current
- ≤120% of maximum input current
