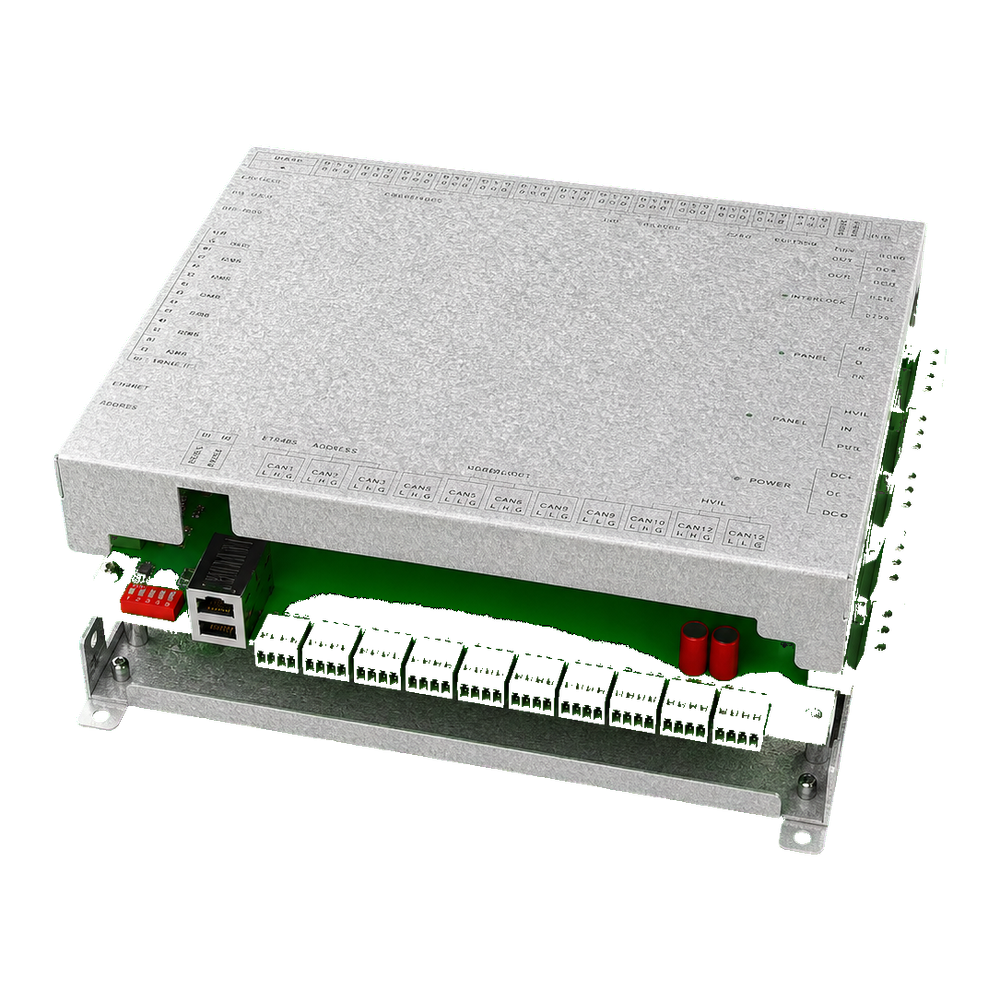

UMEV04 Charging Monitoring Unit
Use UMEV04 for charger monitoring architectures that need two PLC channels, three CAN channels and a 12 V controller. Compare its multi-channel I/O, cabinet fit and firmware integration against the project topology.
Confirm how the controller or HMI joins the charging system
Board size is only one part of fit; interfaces, software, protocol and the surrounding controller architecture must align.
- 01 Role inside the charger
- 02 Electrical and communication interfaces
- 03 Firmware and controller integration
Application fit
Shortlist UMEV04 for a multi-channel charger controller that needs two PLC paths and expanded CAN and I/O capacity.
Compatibility check
Match PLC and CAN channel use, serial peripherals, input and output count, 12 V supply, cabinet space and firmware.
Matched configuration
We match the UMEV04 revision, port allocation, firmware, harnesses, antennas and supplied documentation to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
Compare the integration details that affect system design
Review supply, interfaces, protocol, dimensions and operating environment before freezing the electronics package.
- Model
- UMEV04
- Input voltage
- 12 V
- Power consumption
- Rated ≤10 W; maximum ≤25 W
- PLC communication
- 2 channels for two CCS charging communication paths
- CAN communication
- 3 channels
- RS-232 communication
- 3 channels
- Dimensions
- 220 mm × 160 mm × 42 mm
- Operating temperature
- -40 to +70°C
