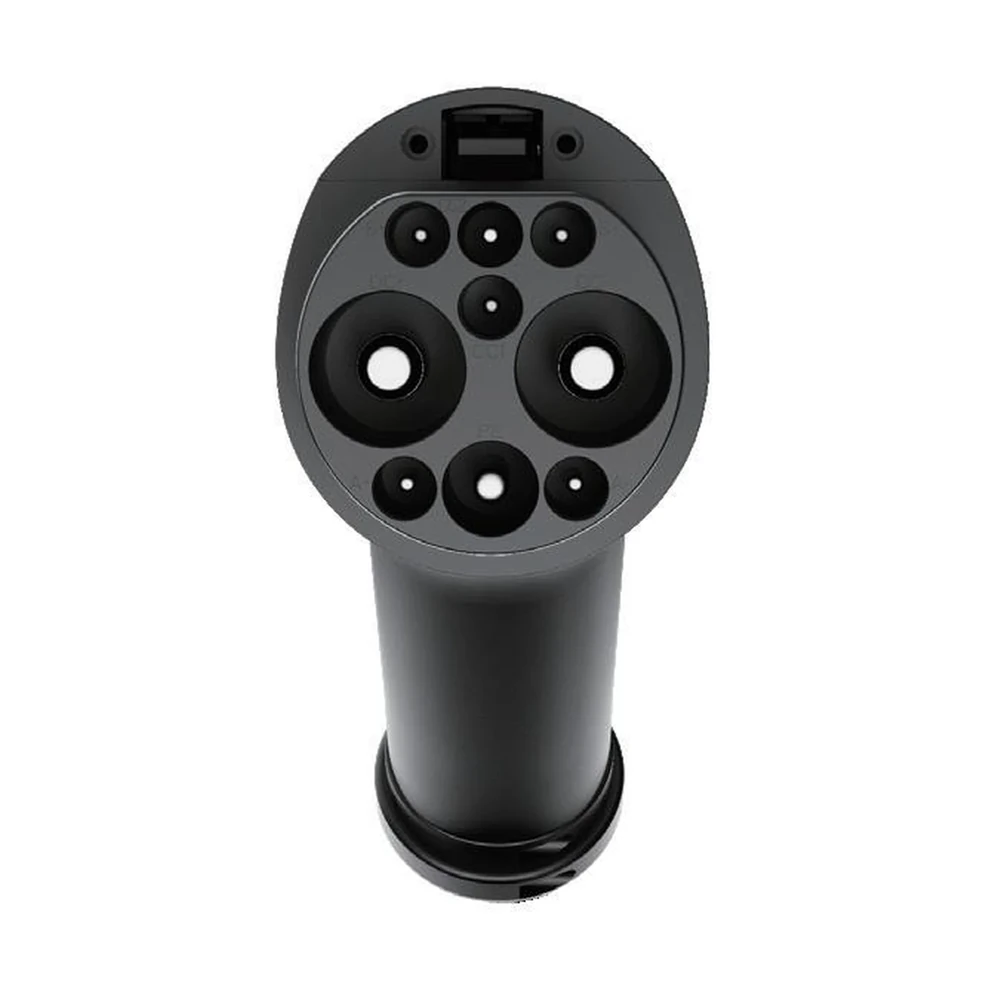

Liquid-Cooled DC Charging Gun Cable
Choose a 1000VDC liquid-cooled charging gun cable for the required 400A, 500A, 600A or 700A duty. Confirm the cable diameter for that current rating from the 26.5mm, 28.5mm, 29.5mm and 30.5mm options, together with connector standard and cooling requirements.
Match both endpoints before choosing cable length and current
The correct cable combines interface, electrical rating, reach, flexibility and the environment where it will be handled.
- 01 Connector at each end
- 02 Current, phase and finished length
- 03 Cooling and installation environment
Application fit
Use Liquid-Cooled DC Charging Gun Cable where continuous charging current and handling requirements justify a liquid-cooled cable rather than an uncooled assembly.
Compatibility check
Verify connector standard, conductor and coolant path, cable length, cooling unit limits, lock, sensors and vehicle interface. Confirm which 26.5mm, 28.5mm, 29.5mm or 30.5mm cable diameter supports the selected 400A, 500A, 600A or 700A configuration.
Matched configuration
We match one current and cable construction, connector ends, cooling loop, sensors, lock, length, environmental scope, tests and documentation to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
Compare the cable details that affect daily use
Check endpoint standard, current, voltage, length, conductor and environmental ratings together.
- Model / product family
- Liquid Cooling Series Products
- Product family
- liquid-cooled charging gun cable
- Rated current
- 400A / 500A / 600A / 700A
- Rated voltage
- 1000VDC
- Shell material
- Thermoplastic material
- Working temperature
- -30C to +50C
- Cable outer diameter
- 26.5 / 28.5 / 29.5 / 30.5mm
- Withstand voltage
- >=3000VAC
Compare matching cables, connectors and storage options
Match this product to your project inputs
Send the destination, application, electrical requirements and quantity to receive a complete product proposal.
