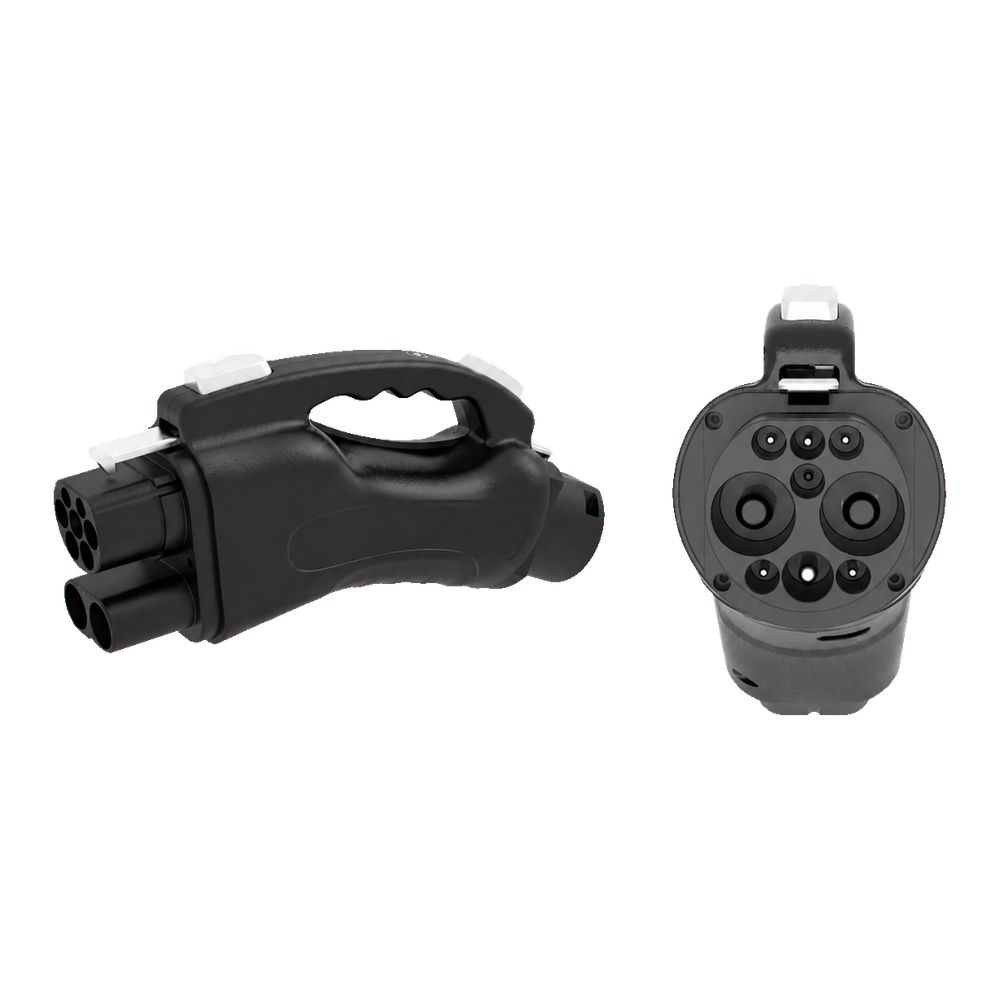

CCS2 to GB/T DC Charging Adapter
Use order profile 84078-01 when the project direction is CCS2 to GB/T and the required ceiling is 300 A, 1000 VDC and 300 kW. Confirm both sides of the charging path and vehicle compatibility before ordering.
Compare the current technical profile
Use these values to shortlist the product, then confirm the final model, interfaces and supplied scope in the project quotation.
- Order P/N
- 84078-01
- Adapter direction
- CCS2 to GB/T
- Rated current
- 300 A max
- Rated voltage
- 1000 VDC
- Rated power
- 300 kW
- Dimensions
- 294.39 mm × 95.48 mm × 145.39 mm
- Net weight
- 1.88 kg
- Protection rating, mated
- IP55
Turn the profile into an order-ready configuration
Application fit
Shortlist this directional adapter only when the charger-side and vehicle-side connection path is CCS2 to GB/T.
Compatibility check
Check the exact charger connector, target vehicle inlet, voltage window, current demand, locking and communication behavior.
Quotation lock
The quotation fixes P/N 84078-01, supported vehicle and charger combinations, labeling and the supplied adapter revision.
Final ratings, interfaces, compatibility, appearance and supplied scope are confirmed in the final quotation. This page does not state price, stock or a fixed delivery configuration.
Compare adjacent product profiles
Confirm this product against your project inputs
Send the destination, application, electrical requirements and quantity to receive the final configuration and supplied scope.
