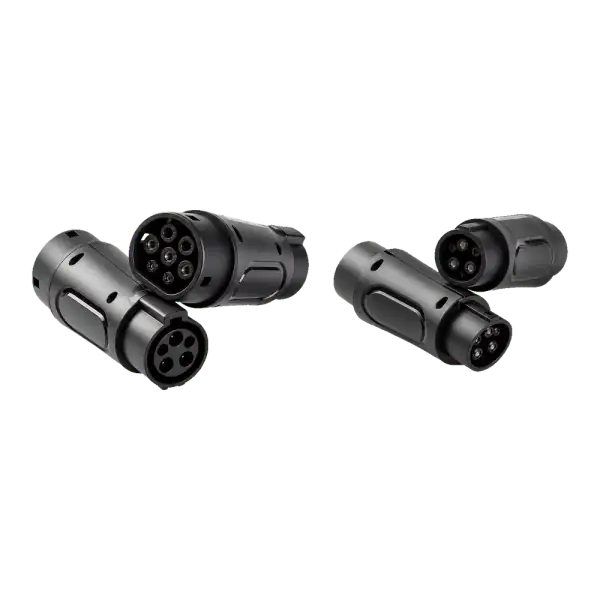

J1772 to Type 2 AC Charging Adapter
Use this adapter when a J1772 Type 1 connection must mate with a Type 2 AC interface at 250 VAC and 32 A. Confirm the vehicle and charging-equipment pairing, mechanical fit and locking arrangement before selection.
Confirm the full connection path before choosing an adapter
An adapter is selected by direction, charging mode and the exact equipment at both ends—not by connector shape alone.
- 01 Source and destination interfaces
- 02 AC, DC or discharge direction
- 03 Vehicle and charger communication
Application fit
Shortlist this adapter for a J1772 Type 1 vehicle-side connection to a Type 2 AC charging interface.
Compatibility check
Verify both interface identities, vehicle and charger behavior, 250 VAC service, 32 A duty, locking and mechanical clearance.
Matched configuration
We match adapter direction, revision, lock arrangement, housing, labeling and supplied documents to the destination, application and quantity you send.
Send the destination, application, electrical supply and quantity. We will return a matched model, connector, accessories and delivery scope.
Compare the ratings that control adapter compatibility
Use the interface direction, current, voltage and operating conditions to build a safe shortlist.
- Adapter direction
- J1772 Type 1 to Type 2
- Rated operating current
- 32 A
- Operating voltage
- 250 VAC
- Insulation resistance
- >1000 MΩ at 500 VDC
- Withstand voltage
- 2000 V for 5 seconds
- Maximum contact resistance
- 0.5 mΩ
Compare adjacent directions and interface options
Match this product to your project inputs
Send the destination, application, electrical requirements and quantity to receive a complete product proposal.
